- 版本:开源版 5.8.6
创建 600 个规则动作左右后,无法创建规则,内存和CPU占用高,集群崩溃
动作是 HTTP 动作,向 TDengine 写入 SQL 的插入语句
- 前言
- 已做过系统调优
- 防火墙是开放的
- 没有 nginx 转发相关端口,不会受限于 nginx 的连接数设置
集群节点(配置都一样)参数:内存 16GB;CPU 是 C86 的,架构为 x86_64,4 core
不太懂内部机制,还望大佬们帮我看一看

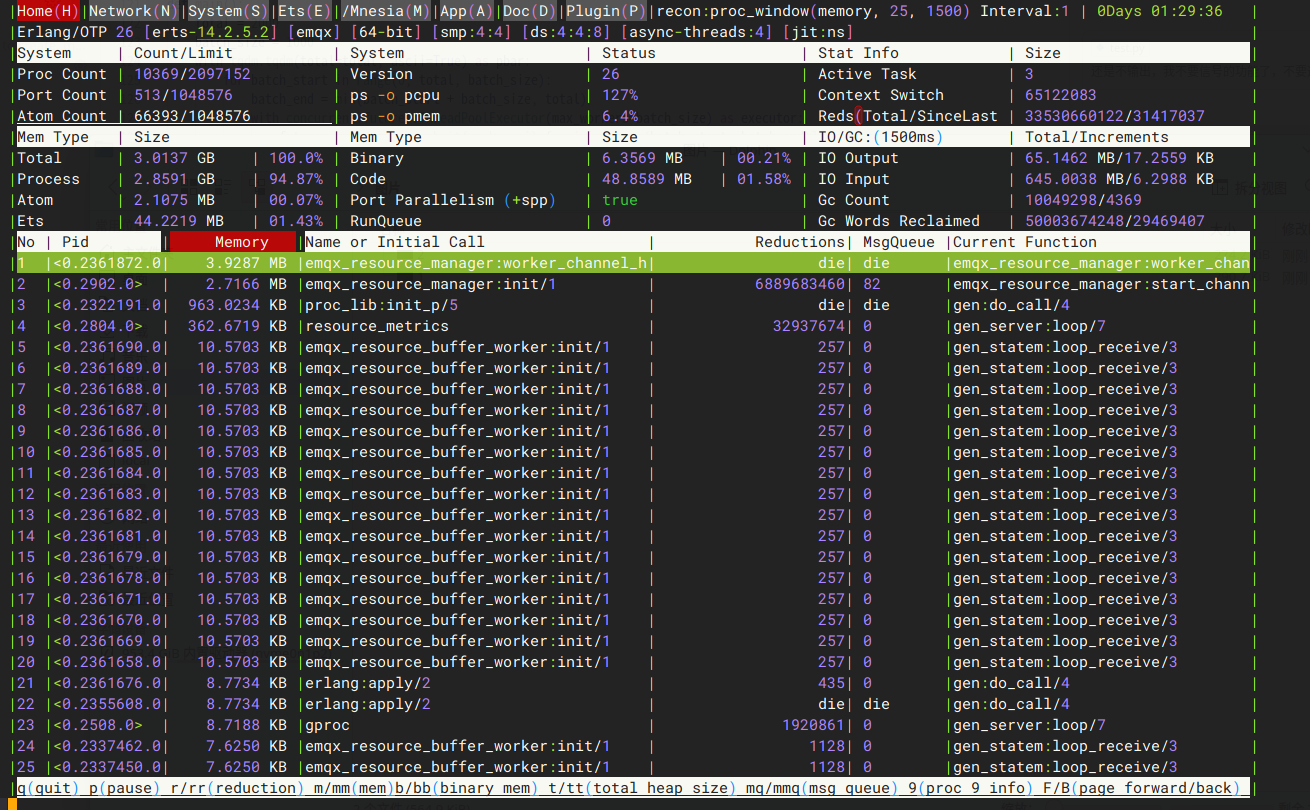

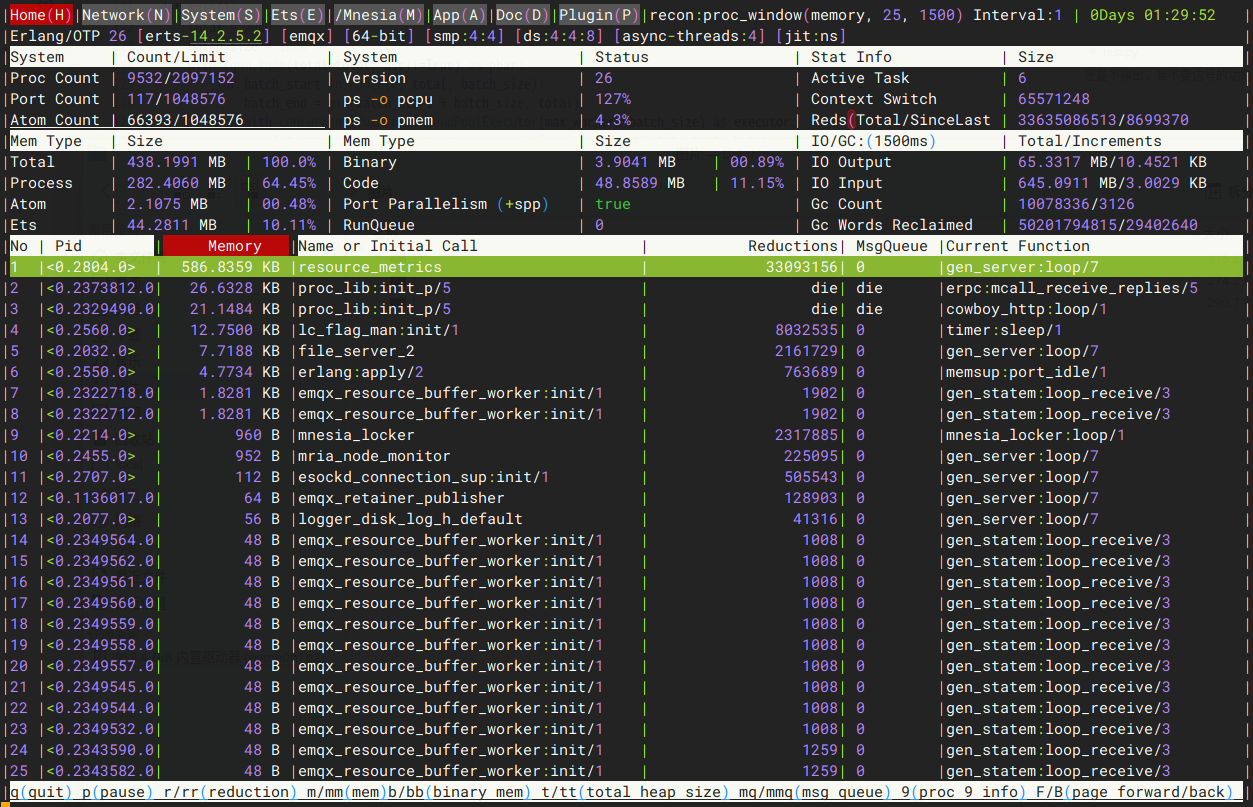

内存的占用忽高忽低,如果是erlang申请内存的行为,申请的内存是否有点大

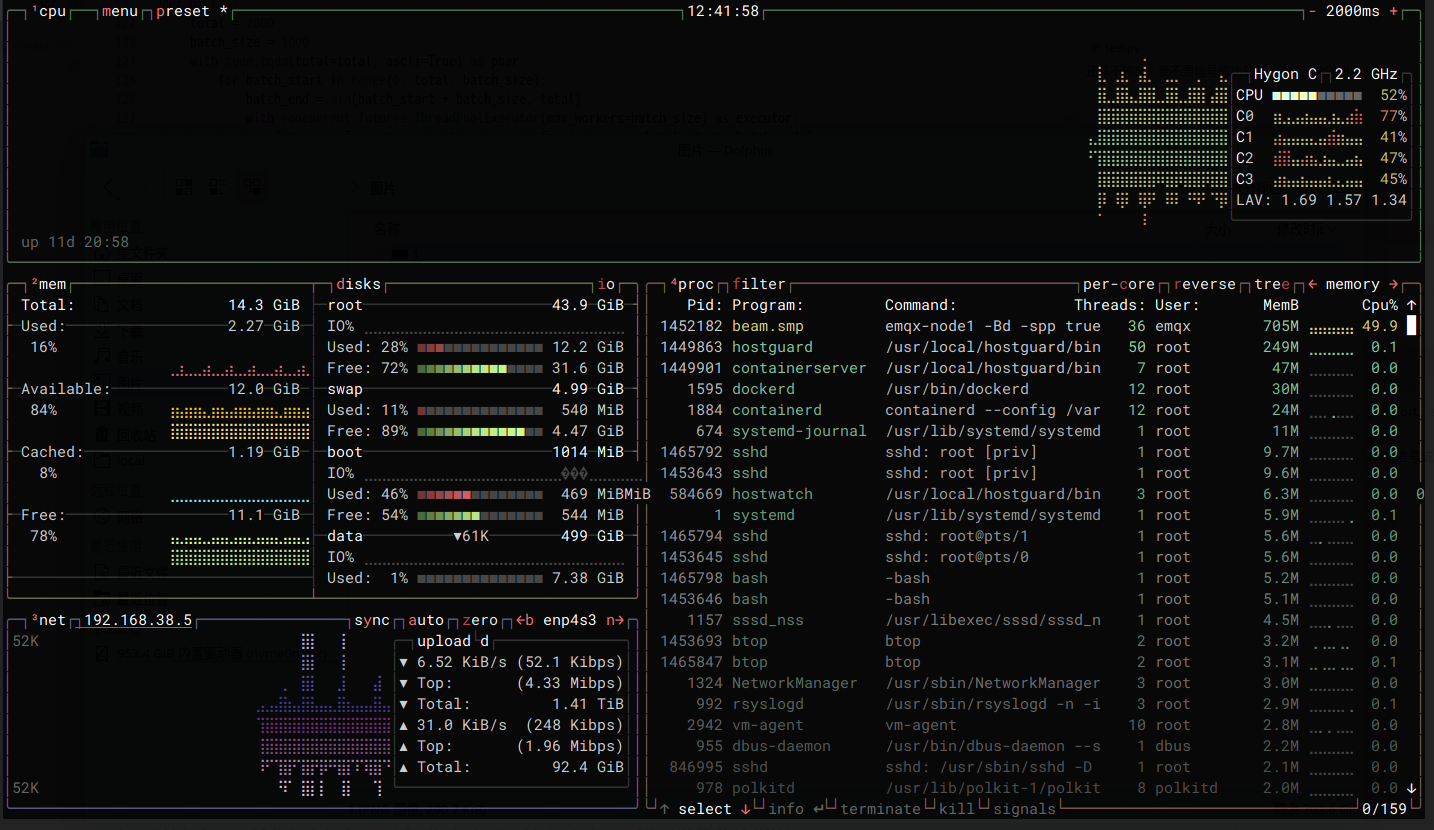

- 占用低的时候

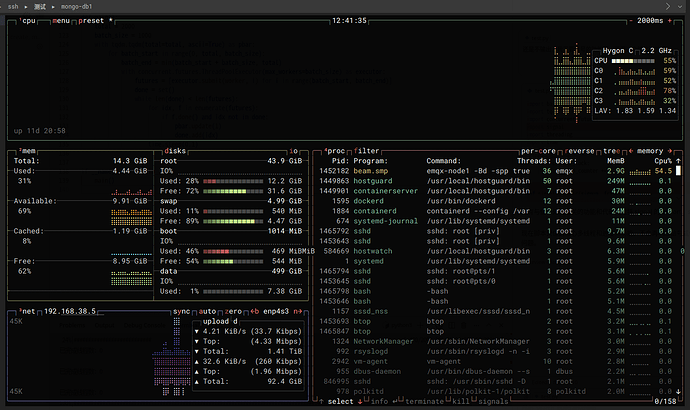

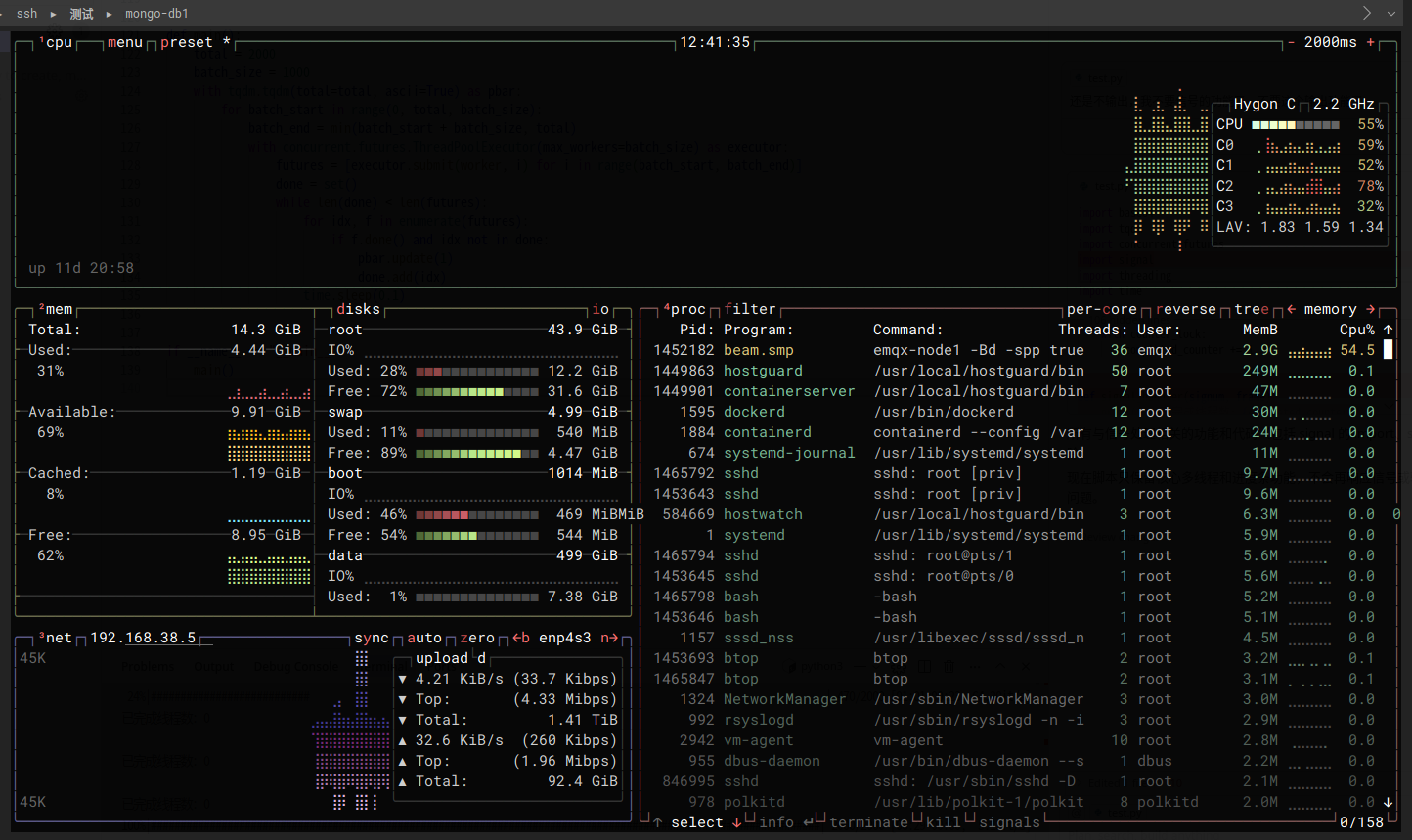

- 占用高的时候
- 崩溃日志
emqx.log.zip (111.5 KB)
- 崩溃 dump
erl_crash.dump.7z.zip (3.7 MB)
- 系统调优相关
swapoff -a
cat << EOF > /etc/sysctl.d/optimize.conf
vm.mmap_min_addr = 65536
vm.max_map_count = 655360
kernel.msgmnb = 65536
kernel.msgmax = 65536
kernel.shmmax = 18446744073692774399
kernel.shmall = 18446744073692774399
fs.file-max = 9223372036854775807
fs.nr_open = 1073741816
fs.aio-max-nr = 1073741816
net.core.somaxconn = 65535
net.ipv4.tcp_max_syn_backlog = 1024
net.core.netdev_max_backlog = 25000
net.ipv4.ip_local_port_range = 10000 65535
net.core.rmem_default = 67108864
net.core.wmem_default = 67108864
net.core.rmem_max = 67108864
net.core.wmem_max = 67108864
net.core.optmem_max = 20480
net.ipv4.tcp_rmem = 16384 26214400 26214400
net.ipv4.tcp_wmem = 32768 26214400 26214400
net.ipv4.udp_mem = 374394 26214400 26214400
net.netfilter.nf_conntrack_max = 1048576
net.netfilter.nf_conntrack_tcp_timeout_close_wait = 60
net.netfilter.nf_conntrack_tcp_timeout_fin_wait = 120
net.netfilter.nf_conntrack_tcp_timeout_time_wait = 120
net.netfilter.nf_conntrack_tcp_timeout_established = 3600
net.nf_conntrack_max = 1048576
net.ipv4.tcp_tw_reuse = 1
net.ipv4.tcp_window_scaling=1
net.ipv4.tcp_fin_timeout = 30
# Linux > 4.9
net.core.default_qdisc=fq
net.ipv4.tcp_congestion_control=bbr
EOF
sysctl --system
sed -i s'|.*DefaultLimitNOFILE=.*|DefaultLimitNOFILE=1073741816:1073741816|' /etc/systemd/system.conf /etc/systemd/user.conf
sed -i s'|.*DefaultLimitCORE=.*|DefaultLimitCORE=infinity|' /etc/systemd/system.conf /etc/systemd/user.conf
sed -i s'|.*DefaultLimitNPROC=.*|DefaultLimitNPROC=1073741816|' /etc/systemd/system.conf /etc/systemd/user.conf
systemctl daemon-reload
cat << EOF > /etc/security/limits.conf
* soft nofile 1024000
* hard nofile 1024000
* soft nproc 127671
* hard nproc 127671
* soft stack 262140
* hard stack 262140
EOF
